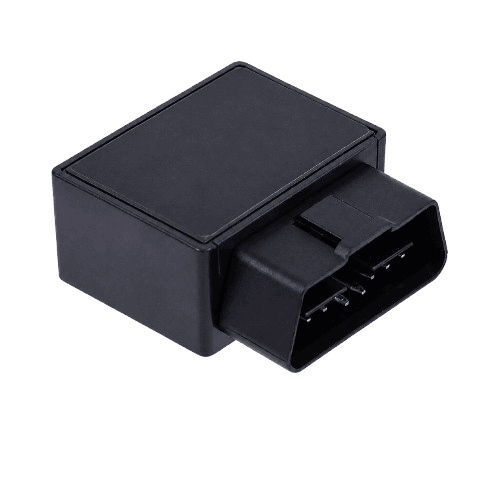

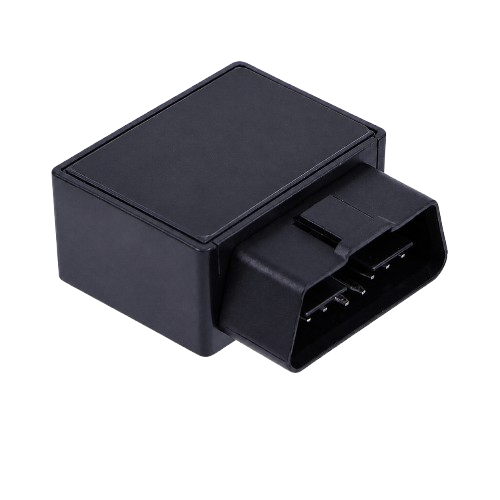

FOSATrack 4G OBDII GPS Tracker - Plug & Play Real-Time Vehicle Tracker with Multi-System Positioning (TKSTAR TK980)
Plug-and-play 4G OBDII GPS tracking with real-time location monitoring, multi-satellite positioning, vehicle alerts and backup battery protection a convenient vehicle tracking solution sold and supported by FOSATrack.
DESCRIPTION
Keeping track of a vehicle shouldn't require complicated installation or permanent wiring. The FOSATrack 4G OBDII GPS Tracker provides a simple plug-and-play solution that connects directly to your vehicle's standard OBDII port.
Designed for convenient vehicle monitoring, this TKSTAR OBDII GPS Tracker combines GPS, LBS, WiFi, BeiDou and GLONASS positioning with real-time tracking, geo-fencing, movement alerts and over-speed notifications. Simply connect it to a compatible OBDII port and monitor your vehicle through the TKSTAR GPS app and web platform.
Key Features
Connect the tracker directly to your vehicle's compatible OBDII port for convenient installation without complicated wiring.
Uses multiple positioning technologies to provide reliable location information in different environments, including outdoor and built-up areas.
Monitor your vehicle's location remotely through the tracking platform and stay informed about its movements.
The built-in vibration sensor can detect vehicle movement and trigger an alert when vibration is detected.
Create a designated safe zone for your vehicle and receive an alert when the tracker moves outside the defined area.
View and review previous vehicle routes through the supported app or web platform, with historical data stored for up to six months.
Receive an alert when the vehicle moves beyond the configured conditions, helping you monitor unexpected vehicle activity.
Set a preferred speed limit and receive an alert when the vehicle exceeds the configured speed.
The built-in 60mAh rechargeable polymer battery provides up to approximately two hours of backup operation if the main vehicle power connection is interrupted.
The IP66-rated design provides protection against dust and water exposure, making the tracker suitable for demanding vehicle environments.
Plug & Play OBDII Installation

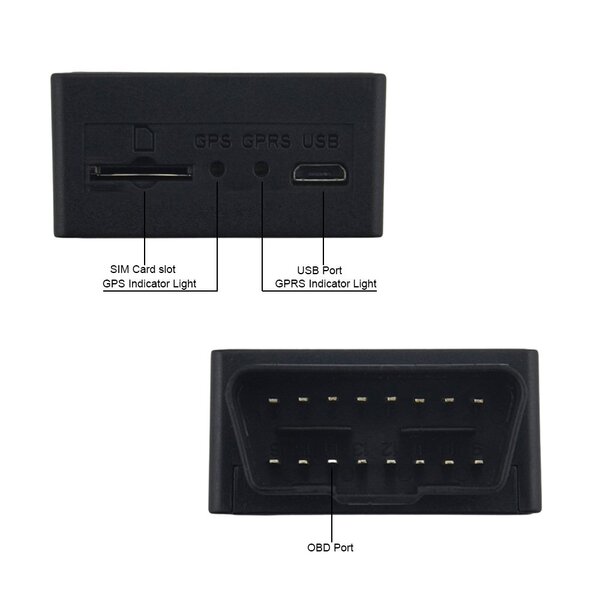

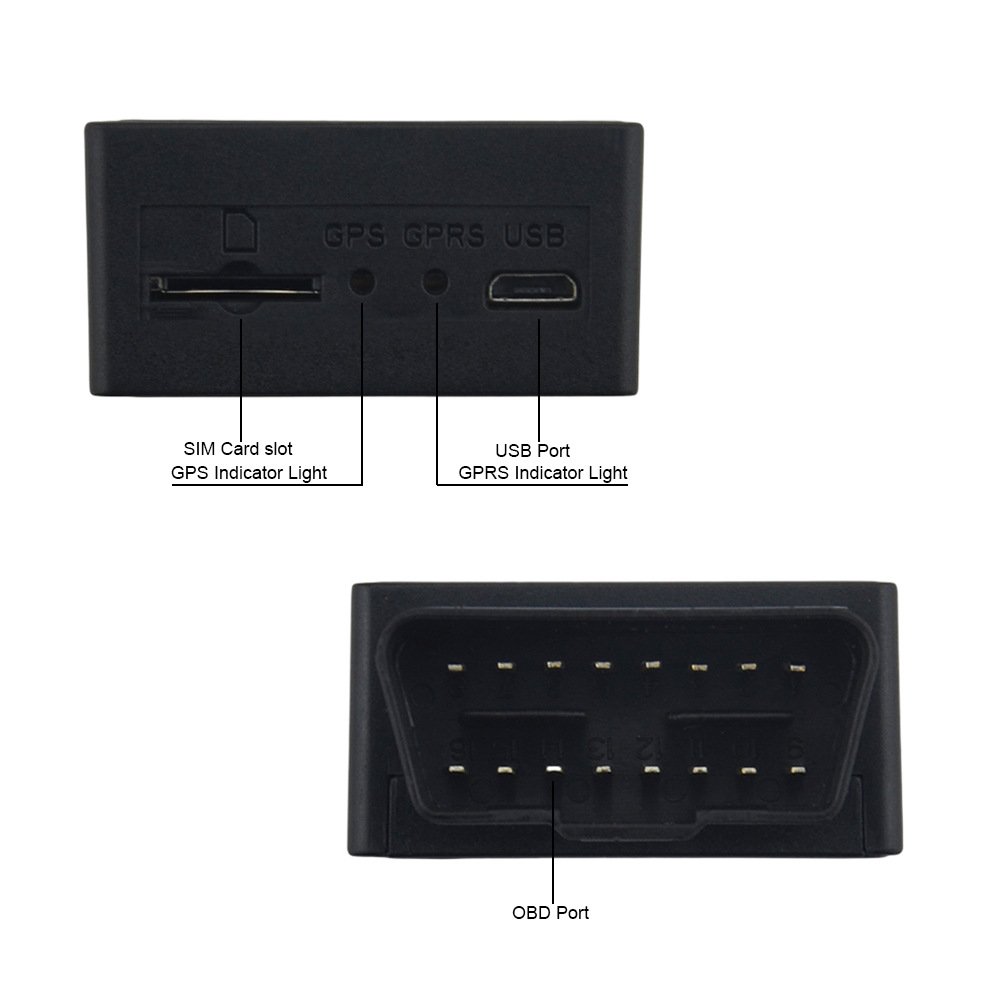

Unlike hardwired GPS trackers that require professional installation, this OBDII tracker is designed for easy installation through a compatible 16-pin OBDII port. Simply connect the device to the vehicle's OBDII socket and configure the tracker through the supported tracking platform.
This makes it particularly useful when you need a tracker that can be installed quickly or transferred between compatible vehicles.
Ideal For: Personal Cars, Vehicle Rentals, Fleet Management, Company Vehicles, Delivery Vehicles, Commercial Vehicles, Equipment and Container/Cargo Tracking.
Multi-System Location Tracking
The tracker supports multiple positioning technologies including GPS, LBS, WiFi, BeiDou and GLONASS. Using multiple positioning sources can help provide more reliable location information across different environments.
The GPS module features 66 channels, a sensitivity of up to -165dBm and positioning accuracy of up to approximately 10 metres under suitable conditions.
Vehicle Monitoring & Alerts
The tracker provides more than basic location information. Depending on the configured platform and network conditions, you can use features such as geo-fencing, historical route playback, movement alerts and over-speed alerts to better monitor vehicle activity.
These functions make the device suitable for both personal vehicle monitoring and business applications where knowing vehicle location and movement is important.
Before You Order
- Designed for vehicles equipped with a compatible 16-pin OBDII port.
- Tracking services require the SIM/network connectivity and an active data plan where applicable.
- Network frequency compatibility varies by region. Please verify that the supported network bands match your local mobile network before ordering.
- GPS accuracy and location update performance may vary depending on satellite visibility, network coverage, vehicle environment and other operating conditions.
- The backup battery is designed to provide temporary operation when vehicle power is disconnected; it is not intended to replace the vehicle's main power supply.
What's Included: OBDII GPS Tracker × 1.
How It Works

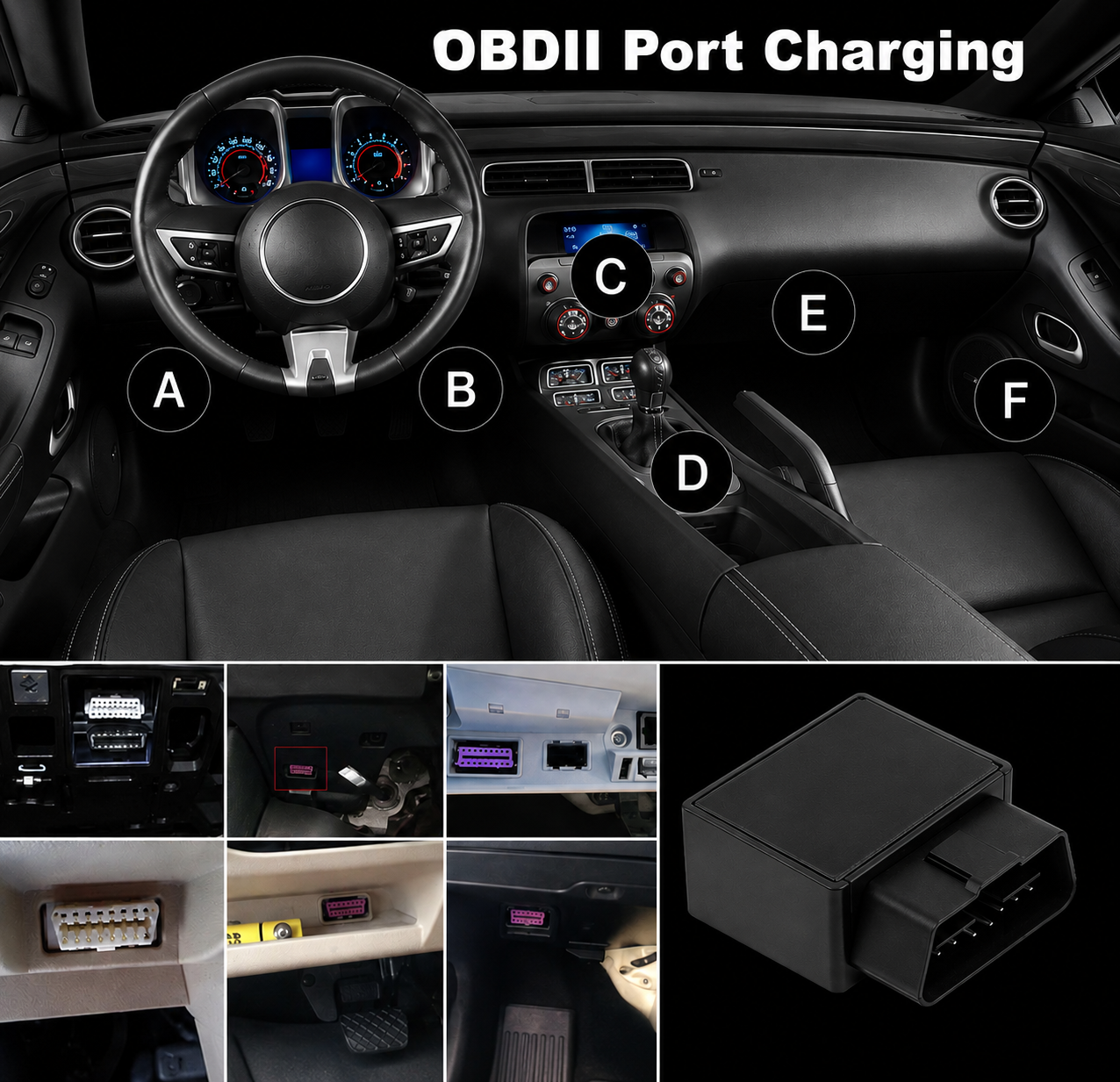

Step 1: Locate the compatible 16-pin OBDII port in your vehicle.
Step 2: Insert the GPS tracker securely into the OBDII port.
Step 3: Allow the tracker to connect to the mobile network and GPS positioning system.
Step 4: Configure the tracker through the supported tracking platform.
Step 5: Start monitoring your vehicle's location and available alerts remotely.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | 4G OBDII GPS Tracker |
| Model | TKSTAR OBD GPS Tracker |
| OBD Interface | Standard 16-Pin OBDII |
| Network | 4G / 3G / 2G |
| GPS Module | Yes |
| Positioning Systems | GPS + LBS + WiFi + BeiDou + GLONASS |
| GPS Channels | 66 Channels |
| GPS Sensitivity | -165dBm |
| GPS Accuracy | Up to 10 metres |
| Time to First Fix | Cold Start: 35 - 80s · Warm Start: 35s · Hot Start: 1s |

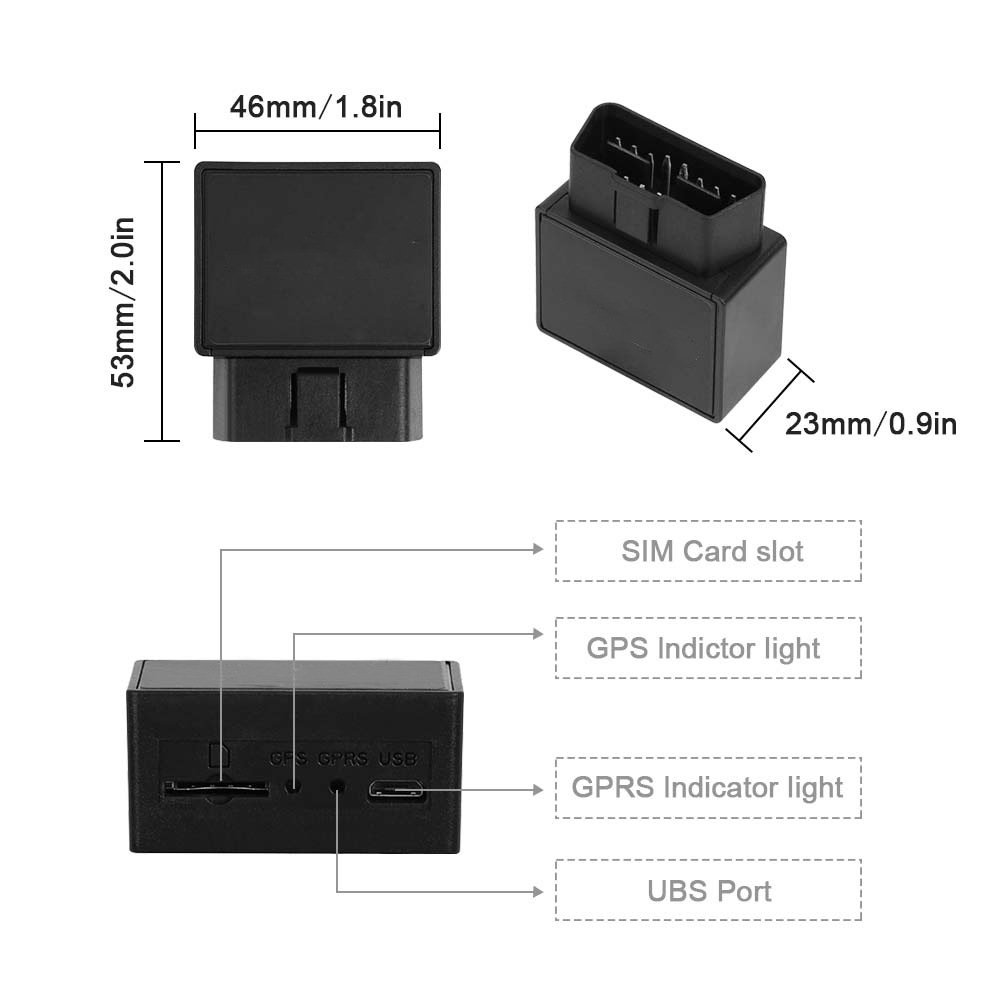

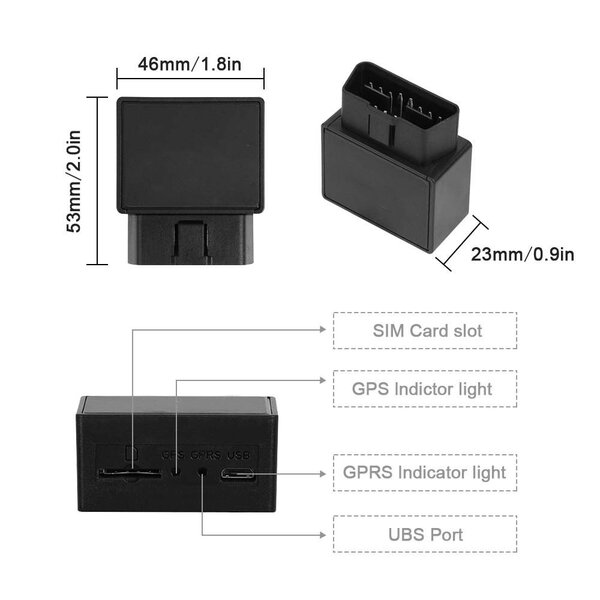

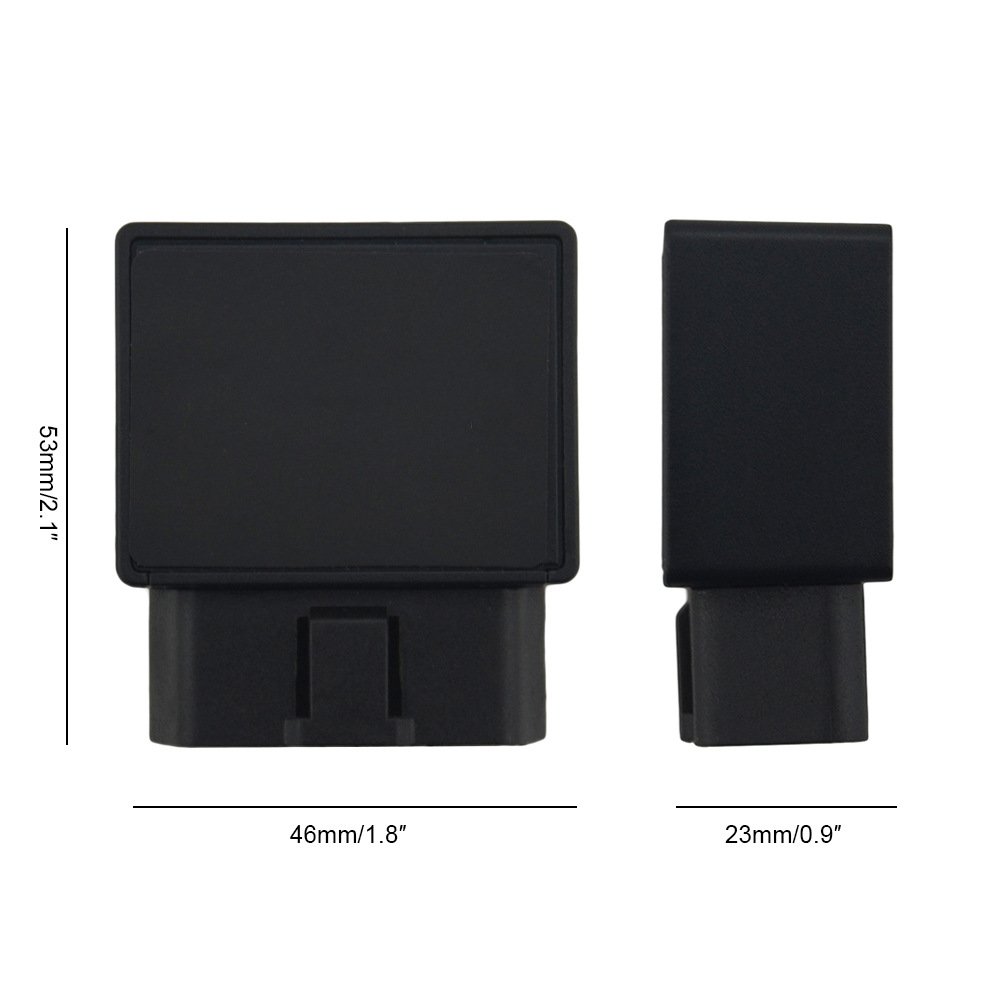

| Dimensions | 58 × 45 × 22 mm |
| Weight | 54g |
| Operating Voltage | DC 9V–35V |
| Working Current | 12V / 73.6mA |
| Backup Battery | 60mAh, 3.7V Polymer Battery |
| Backup Standby | Up to 2 Hours |
| Waterproof Rating | IP66 |
| Operating Temperature | -20°C to 55°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5%–95%, non-condensing |
| GPS Chip | ARM STM32 |
| Certifications | CE, FCC, RoHS, UL, WEEE |
| Wireless | Yes |
